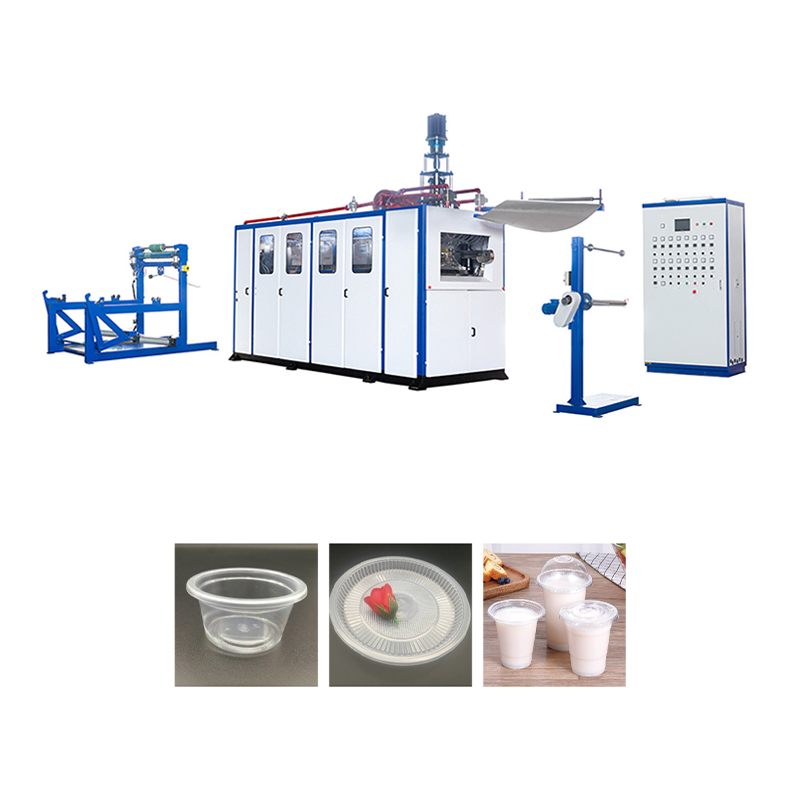

Hoc aer pressura thermoforming apparatus quod adoptat hydrau quattuor columnae structura characters lenis operationem humilitatem et fortis fingunt clamping vi. High gradu de automation cum in-fingunt-secans munus, magno amplio apparatus facultatem et salvum labore sumptus.
Principalis features
Hoc plastic caeli pressura thermoforming apparatus adoptat tardus Internationalis plastic sheet formatam technology. LT est integrated consilio apparatus, electricity et Gas, regitur microcomputer et programmable plc control et tota ratio hml.This apparatus pascens, calefactio, formatam, tendat sheet, calefactio, formatam, et stacking in unum.
Secundum diversas configurationes, potest dividitur in:
A. Hydrau coegi, servo extendens, servo sheet pascens
b.hydraulically coegi, pneumatic extendens, servo sheet pascens
In temperatus imperium ratio adoptat unum-punctum temperatus imperium de tegulis, temperatus est accurate. Et non est temperatus control metri et temperatus imperium module. Using PLC Direct imperium, uno puncto precise temperatus imperium. Providemus firmum et accurate temperatus ad uber coronam. Faciens uber CUMATIUM firmum et improving productio efficientiam.

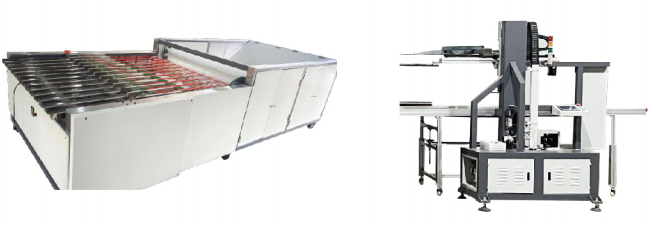

Calicem Stacking Apparatus: apta iusto pocula / robot armum: apta non-conventional products ut crateras, prandium adipiscing, acetabula, etc.
Technical parametri
| Hydraulic coegi calicem / Crater / operculo thermoforming apparatus | ||||
| Exemplar | Hyx-DCLXXX | Hyx-DCCXXX | Hyx-DCCL | Hyx-DCCCL |
| Idoneam materiales | P. PS, pet, play, coxis, (materiam degradatus) etc. | |||
| Sheet Crassitudo | 0.3-2.5mm | |||
| Sheet width | 680mm | 730mm | 750mm | 850mm |
| Max. Formatam regio | 680x350mm | 730x420mm | 750x520mm | 850x560mm |
| Max. Formans profundum | ≤140mm | ≤180mm | ≤180mm | ≤180mm |
| Facultas | ≤30shots / minute | |||
| Heating vincit potestate (tribus Phase) | 34kw | 41.3kw | 49.8kw | 56KW |
| Main Motor Power | 7.5KW | 11Kw | 15KW | 15KW |
| Servo motricium ad sheet extendens | 7.5KW | 7.5KW | 7.5KW | 7.5KW |
| Sheet Power Power | 2.2kw | 4.4kw | 4.4kw | 5.5kw |
| POPULUM | 380V / 50Hz | |||
| Aeris pressura | 0.6-0.8MPA | |||
| Caeli consummatio | MMMCC ~ (IV) l / min | (IV) ~ (V) l / min | (IV) D ~ (VI) l / min | (IV) D ~ (VI) l / min |
| Aquam consummatio | 40-45L / min | 40-50L / min | 40-60l / min | 40-60l / min |
| Dimensiones | 3500x16002300mm | 4000xx1600x2200mm | 4200x1720x2500mm | 4270x1810x2600mm |
| Pondus | 4500kg | 6000kgs | 7000kg | 7500kg |
Numerus paginae correspondentes ad album: P23, P24
Aeris pressura plastic calicem / Crater / operculo faciens stacking apparatus An specie disposito producendo summus qualitas plastic pocula, phialas, operculis et aliis thermoformati products. Machina combines Advanced Aeris pressura thermoforming technology cum hydrau quattuor columnae structuram curare lenis operationem humilitatem et fortes fingunt clamping vim durante productio processus.
Technical Features:
Agentibus automation: Built-in FORMA secans munus magno amplio productio efficientiam et reduces labor costs.
Multi-materia Applicability: Sustinet a varietate materiae ut Pp, PS, Petr, PLA, Coxis, et Degradable Materials in occursum tuum diverse productio necessitates.
Potens euismod: maxime formatam profundum potest pervenire 180mm et formatam area est wide ad occursum productio products de diversis magnitudinum.
Energy salvis et environmental tutela: et optimized calefactio system et industria, salvis consilium ut efficiens productionem dum reducing industria consummatio.
Product parametri:
Nos providere a varietate exempla te eligere ex, ab hyx-DCLXXX ad hyx-DCCCL, ad occursum productio necessitatibus diversis squamis.
Area CUMATIUM Area: a 680x350mm ad 850x560mm, adaptabile ad formas variis magnitudinum.
Productio capacitatem: Sursum ad XXX calefactiones per minute, occurrens productio requisita efficiently.
Power: Using tres-Phase potentia copia, et calefacit potestas a 34kw ad 56kw calefactio, et pelagus motricium virtutis a 7.5kw ad 15kW, cursus fortis driving.
Aeris et aqua pressura: 0.6-0.8MPA Aeris pressura et moderari aqua consummatio ensure a firmum productio environment.
Otium of usu:
Nostrum apparatus consilium focuses in user experientia. Quod operatio interface est simplex et intuitive, quod est facile ad esse. Etiam incipientium can adepto coepi cito.
