Specificatio
Main Features:
Adopt PLC control, totum ratio est plene automatic, parametri digital
Display, facile operatio
Hoc apparatus potest producit plastic scutras cum laminas sicut per diem infra X
Plastics laminas potest uti variis
IV-titulum hydraulicis structuram, magis firmum, humilis strepitu
Importari heating filis tellus calefacientis, accurate temperatus imperium, diu vitae
Nos providebit customized servitium vobis, quod apparatus potest disposito et
fabricari ut opus.
Provectus Servo Motor sheet transportandis ratio, extendens longitudinem
Technical parametri:
| Hyx, 7185-4 | Hyx-DXX | ||
| 1 | Idoneam materiales | PS, PS, PD, PVC, PLA, etc. | |
| 2 | Material width | 450-740mm | |
| 3 | Crassitudine materiales | 0.15-2mm | |
| 4 | Max. Formatam regio | DCCX × 850mm | DCCX × 520mm |
| 5 | Min. Formatam regio | CDXX × 300mm | |
| 6 | Max. ARGENTUM | DCXC × 830mm | DCXC × 500mm |
| 7 | Formatam et cutting statione ictum | 0-160mm | 0-130mm |
| 8 | Positivum formatam profundum | 120mm | |
| 9 | Negative formatam profundum | 110mm | |
| 10 | Stacking mechanism ictum | ≤500mm | |
| 11 | Maximum vis de Crisere Statio | 80.T (for use cum mori calefactio ratio)
| 60t (for use cum mori calefactio system) |
| 12 | Force maximum of secans Press | XXXVIII ton | XXXV ton |
| 13 | Rated potestatem calefactio fornacem | Superiores clibanus 65kw, minus clibanus 65kw | Superiores clibanus 45kw, inferior clibanus 45kw |
| 14 | Calefactio modum | Superioribus et inferioribus, III sectiones calefactio | |
| 15 | Re navitas consummatio | De XL ~ 60kW / h circa XXX ~ 50kw / h | |
| 16 | POPULUM | AC 380v / 50Hz (III n PE) | |
| 17 | Max. CELLA | 20-30 Cycles / minute | |
| 18 | Max. Volvuntur diameter / pondere | Φ800mm / 500kg | Φ700mm / 300KG |
| 19 | Machina pondus | 12,000kg | 9,000kg |
| 20 | Dimensionem (L * W * h) | 11m × 2.3M × 2.5m | × × × × 9m × 2.5m |
| Refrigerium | FORMA refrixit circulans aqua | ||
| Request | Air copia ≥3.5m3 / min, aere pressura 0.6 ~ 0.8MPA. | ||
| Pelagus configuratione List | |||
| No. | Principalis electronic component | Brands | |
| 1 | Imperium ratio | Taiwan Delta | |
| 2 | PLC Module | Taiwan Delta | |
| 3 | Tactus screen | Delta XII inch HD tactus screen | Delta X inch HD tactus screen |
| 4 | Temperature Imperium System | Delta (intelligentes temperatus imperium) | |
| 5 | Medium Nullam | Schneider | |
| 6 | AC contact | Schneider | |
| 7 | Aere switch | Delixi | |
| 8 | Formatam Station Servo Motor | Delta (superioris: 5.5kW, inferioribus: 5.5kW) | Delta (superius: 3kw, inferioribus: 3kw) |
| 9 | Cutting Station Servo Motor | Delta (superius, 7.5kW, inferioribus: 5.5kW) | Delta (superius: 4.5kW, Inferius: 3kw) |
| 10 | Punching statione servo motricium | Delta (superioris, 7.5kW, inferioribus: 7.5kW) | Delta (superius: 4.5kW, Inferius: 4.5kW) |
| 11 | Sine delivering servo motricium | Delta 5.5kw | Delta 3kw |
| 12 | Stacking servo motricium | Delta 2KW cum fregit | |
| 13 | Imperium Cabinet | Shanghai Tong KE | |
| 14 | Photoelectric switch | Korea Fotek | |
| 15 | Salus lux sagum | Shanghai pu bang | |
| 16 | Switching potentia copia | Taiwan Delta | |
| 17 | Calefactio Brieker | Iuncturam venture importari calefactio filum, cum scelerisque tincidunt Cottonus intra, 600W absit-infrared Ceramic Radiator | |
| 18 | Vacuum sentinam | Elmo Riatschle V, VC100 | |
| 19 | CYMBALON | Iaponia SMC ultra-summus celeritas responsio magna-fluxus CYMBALON, cum diameter 1.5 pollices. | |
| 20 | Refrigerant ratio | Japan Daikin compressor 6p | |
| 21 | Adferens | Japan NSK | |
| 22 | Linearibus | Taiwan Hiwin | |
| 23 | CYMBRAULA | Iaponia CKD | |
| 24 | Aeris cylindri | Taiwan airtac | |
| 25 | Electromagnetic valvae | Iaponia CKD / SMC Taiwan Mindman / Shako | |
| 26 | Vacuum valorem | Taiwan Mindman | |
| 27 | Chain semita | Aviation Part Aluminium Alloy | |
| 28 | F.r.l | Iaponia CKD et SMC | |
| 29 | PASSUS | Duplici-bar automatic mechanica cibum fabrica ad redigendum labore intensionem operarios, 500kg. | |
| 30 | Corpus Metal | Pingere curatio | |
| 31 | Duplex-row torquem | Taiwan kmc (Factory Sharpening Treatment reducit Eventum plastic pulveris.) | |
II. Fabrica Technical Description
A. Formatam apparatu ex pelagus structuram frame, positivum et negative pressura formatam ratio, temperatus imperium system, vacuum ratio,
Heating Ratio, Air Imperium System, Electrical et PLC Imperium Ratio, Punching System, Product Decomposition Stacking et Automatic Rewinding System et
alias structural components.
B. The main body of the equipment: It is made by welding and welding steel structural sections such as square and channel steel, which are used for assembly heating, die forming, die cutting and auxiliary devices. The overall steel structure frame is guided by
Sustentationem et aliud processum fundamenta ut mobile fabrica transmittendi et transformans motus et vim habet sufficiens vires et rigiditatem. Omnes metallum superficiebus tractata cum anti-rubigo curatio et imo iacuit est sprayed cum anti-rubigo pingere; General and Latin partes sunt in structuram ad facilitate postea sustentacionem et postea omnium partium.
Ⅲ. Electrical et PLC control Systems / Salutis Facilities
Et electrica imperium ratio est regitur a plc-integrated module. In Industrial tactus ostentationem adhibetur ut HMI (humana machina interface) et
Seres interface adhibetur. Et apparatus est bullarum ad operationem et occasum et modificatio omnium processus parametri, faciens apparatu facile ad agunt et ponere.
Opus modum totius apparatus dividitur in manual / automatic omnes occasum munera operatur tactus ostentationem; Post operator est positus materiae, premere automatic startup apparatu ad perficere totum processus coronationem processus usque ad materiam dispensando et productionem in Silo completed; Manual est maxime usus ad fingunt mutare vel sample imperium.
Systematis instructa cum multiplex tutela mensuras superiores, et quisque actum, ut collidant cum invicem provisum est interlocking et clausa-loop imperium praesidium.
Salutis portam tutela sigillum consilio, uti manual fibula ostium, manual profecionem, salute craticulam installed in praesidio ostium ad amplio salus elementum apparatu et curantium salutem.
Distributio scrinium continet praesidium circuits, comprehendo overcurrent, overvoltage, undervoltage, brevi circuitu, et overload praesidium. Et calefactio elementum protected per fuse. Nam salus problems ut causa nocere ad systematis vel workpiece, ibi sunt monitionem signa et dicta. X% spatium reservatur in potestate arca pro futura mutationes. Electric scrinium est instructa cum filter et tutela refrigerationem fan.
Omnis non-amotibiles funibus et filis extra potestatem copia arca es occultatum in cable socors ad facile foramen et reparatione. Si hoc non potest, uti a caligarum figere.

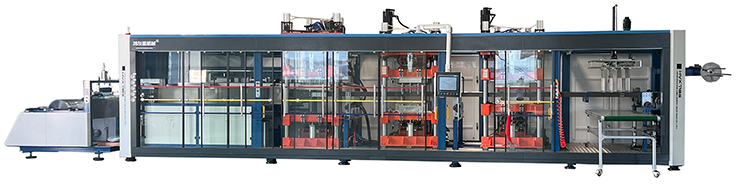

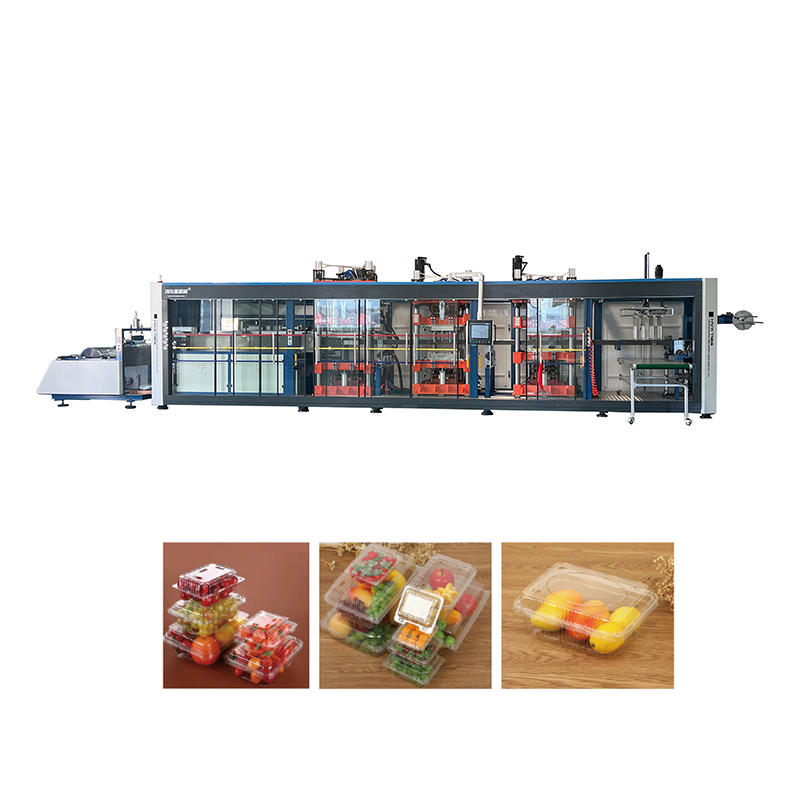

Hyx, (VII) CLXXXV plene automatic positivum et negans pressura quattuor statione thermoforming apparatus Est productum diligenter aedificavit per combining provectus technology et annos productionem experientia. Hoc apparatus apta PP, PS, PD, PVC, PLA et aliis materiae, et facile obviam coronam necessitatibus diversis industries.
Pelagus Feature:
Lata materiam adaptability: et apparatus potest tractare a varietate materiae cum latitudinem 450-750mm et crassitudine 0.15-2.5mm, occurrens in materia requisitis in diversis productio missionibus.
Large CUMATIUM Area, maximum CUMATIUM Area usque ad DCCX
High-praecisione: Quod maximum secans area est DCXC x 830mm, et maximum cutting vi de 80t (usus est in fingunt calefactio system) ensures lenis productum margines et altum praecisionem.
Positive and negative pressure forming technology: The machine adopts positive and negative pressure forming technology, with a positive pressure forming depth of 140mm and a negative pressure forming depth of 150mm, which can meet the molding needs of complex-shaped products.
Actini acervos mechanism: et plaga in stacking mechanism potest pervenire ≤500mm, quod facilit in stacking et tractantem products et improves productio efficientiam.
Energy salvis et environmental tutela: usura superiores et inferioribus tres-scaena calefacere modi, in ipsa industria consummatio est solum 40-60kw / h, qui valde reducit sumptibus.
High-celeritate productio: maximum productio celeritate potest pervenire 20-30 temporibus / minute, vehementer improving productio efficientiam.
Magna mole consilio: altiore magnitudine apparatus est 14m x 2.3m x 2.5m et pondus pervenit 22t, cursus firmitatem et ex apparatus.
Technical parametri:
Rated Power: totus apparatus est 160kw. Calefacit fornacem dividitur in superioribus et inferioribus partes 72kw.
Vox Supple: AC380V / 50Hz (III n PE).
Refrigerant Methodi: FORMENTUM refligitur a circuitu aqua ad curare stabilitatem et coronam processus et uber qualitas.
Aeris pressura requisita: Air copia ≥3.5M³ / min, Aeris pressura 0.6 ~ 0.8MPA ut normalis operationem ex machina.
Application areas:
Hyx-(VII) CLXXXV plene automatic positivum et negans pressura quattuor-statione thermoforming apparatus est late in cibum packaging, medicinae apparatu, electronic products, auto partibus et aliis industries. Est momenti tool ad plures societates ad consequi automated et efficientem productionem.
